Tactical Hunting Sniper Laser Rangefinder Riflescope Long Range 1200M Real-time Rang Finder Distance Meter Angle Speed Telemeter
Color

SPECIFICATIONS

Aiming method: mechanical aiming + scope adjustment

Battery: CR-2 X 1 (3V) Lithium battery

Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

Inclination Angle: ±90°

Measurement Distance: 1200

Model Number: MINI8

Operation System: Laser

Origin: Mainland China

Ranging Resolution: 0.1m

Ranging Scope: 1200M

Red laser pointer: 650NM

Screen: OLED

Size: 5*6.2*10cm

Voice reading: Chinese/English

Waterproof: IP54

Weight: 252g charged, 241g uncharged

Tactical Hunting Sniper Laser Rangefinder Riflescope Long Range 1200M Real-time Rang Finder Distance Meter Angle Speed Telemeter

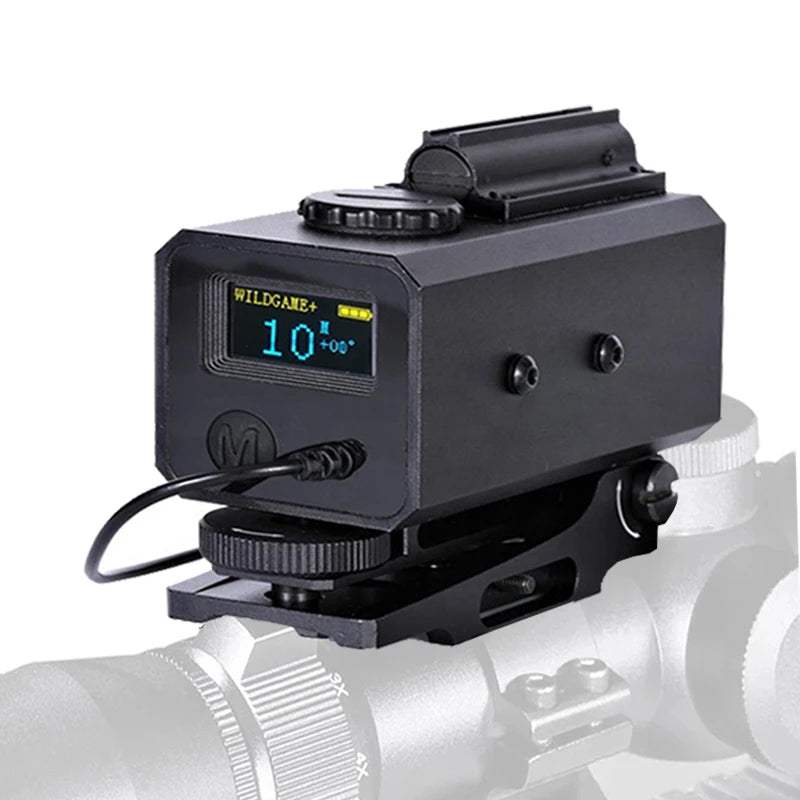

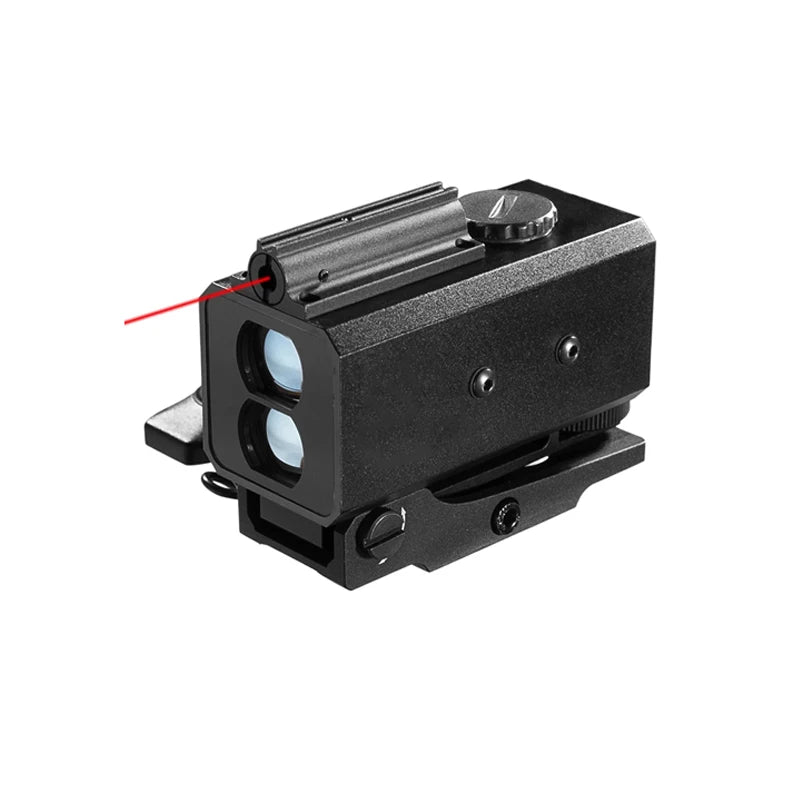

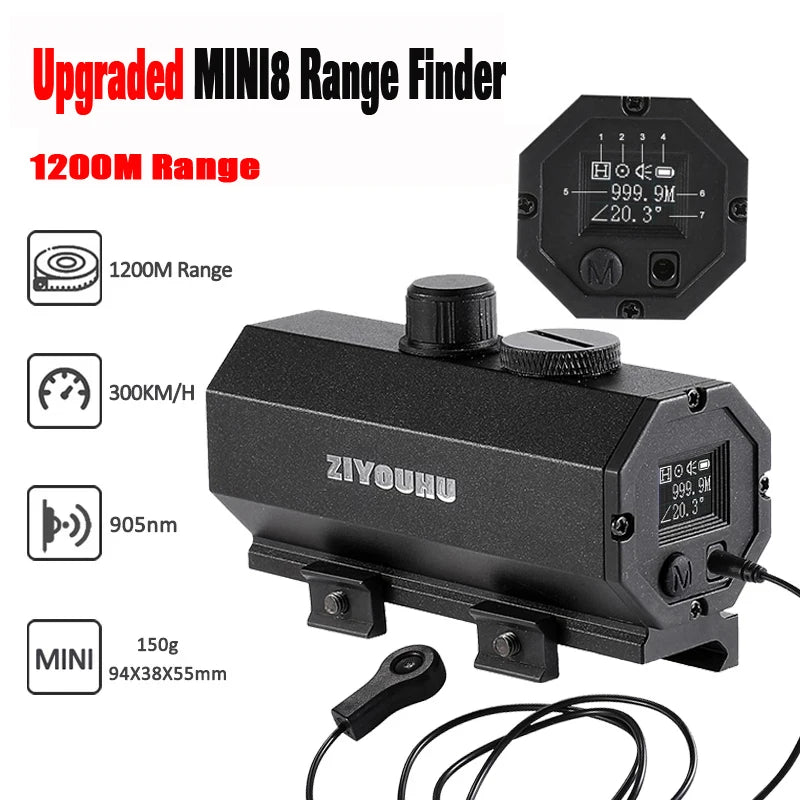

Mini8 Range finder

【Features】On easy-to-assemble rifles,bows,crosses and more, Continuous distance measurement in hazy weather,Check if the direction of the moving object is consistent

1. Product introduction:

Lightweight laser rangefinder, with all-aluminum housing, OLED screen, can be used all day long;

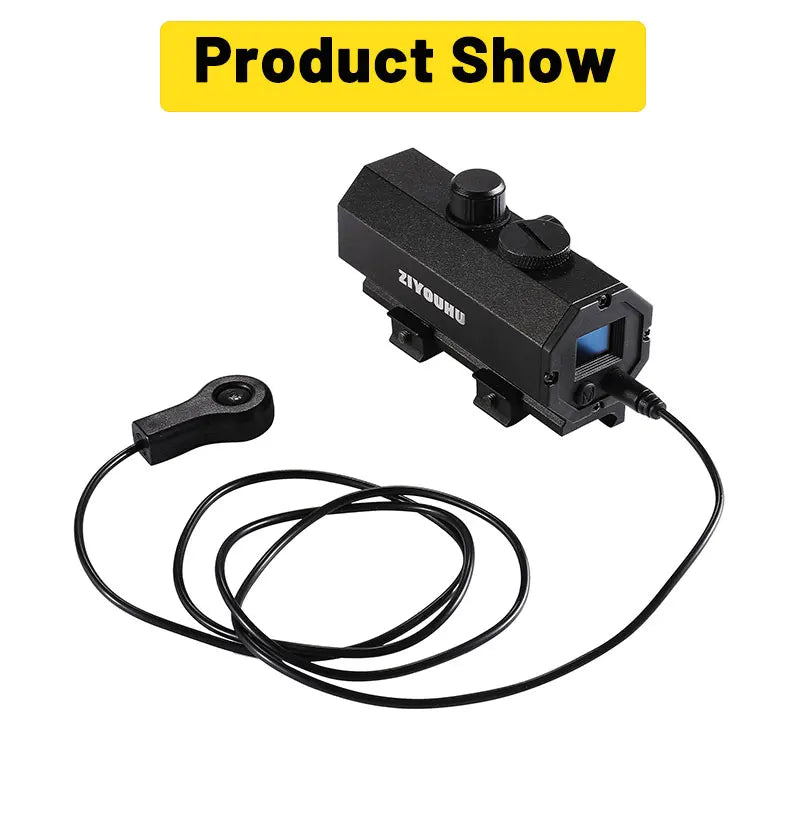

Measurement button and earphone wire control design, with voice reading function;

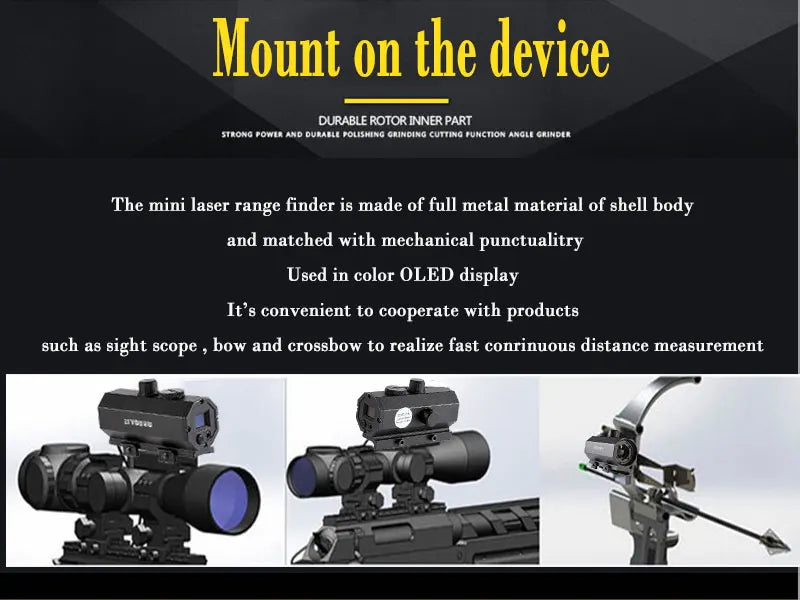

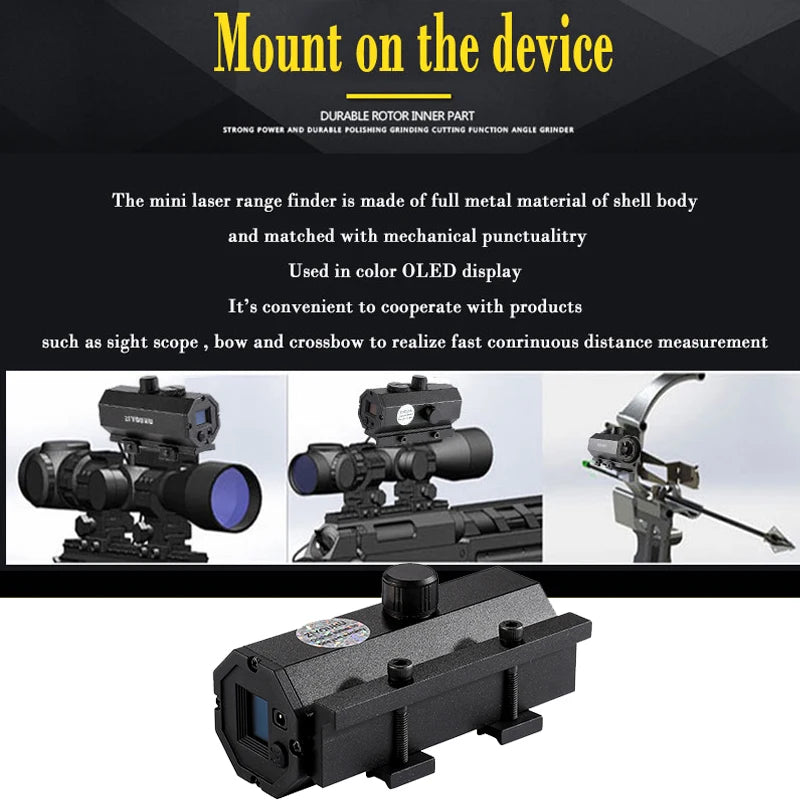

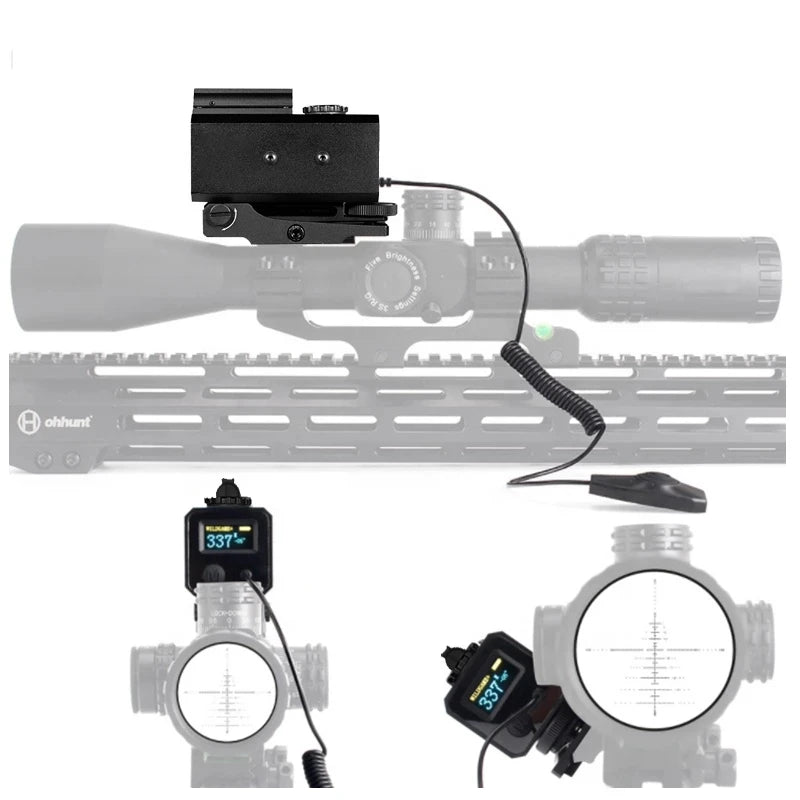

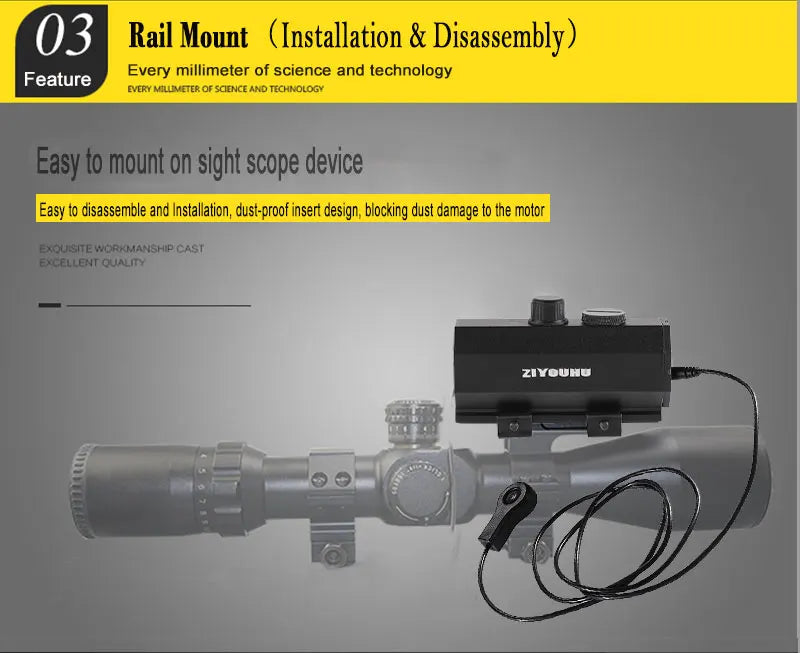

The product can be quickly mounted on firearms, bows and crossbows, and with the mechanical aiming point, ranging is ubiquitous.

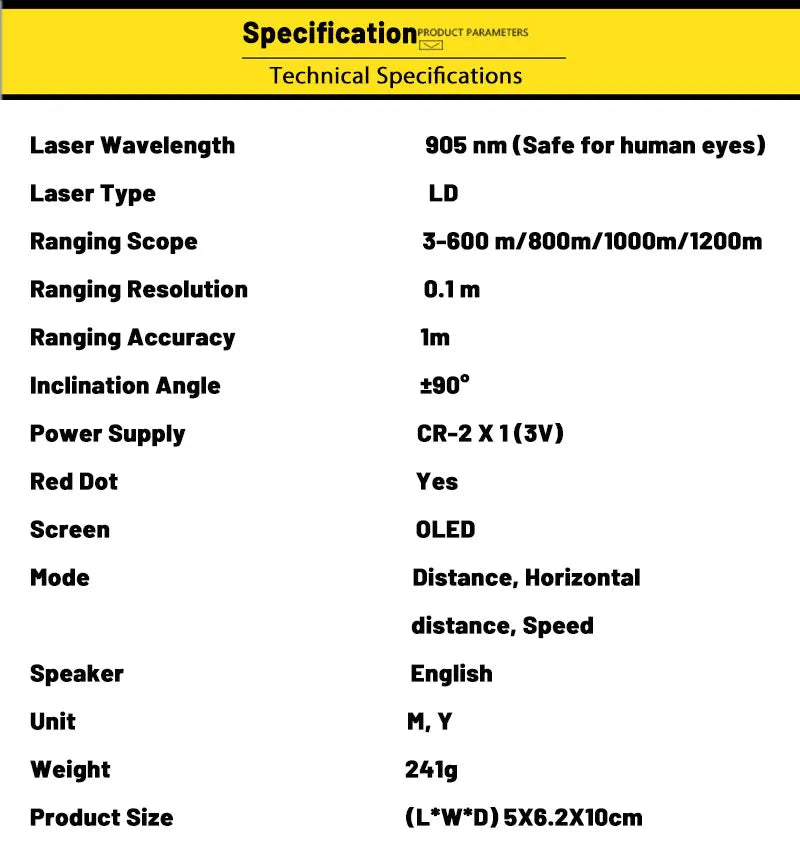

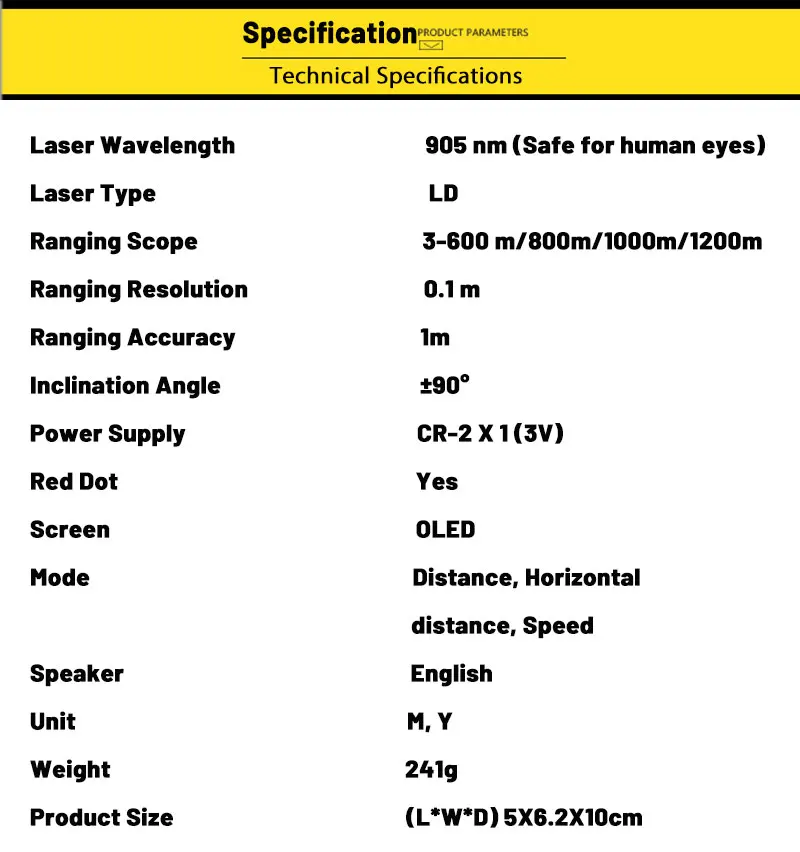

2. Product parameters & performance indicators

1. Ranging range 10-1200 meters, ranging resolution 0.1m

2. Red laser pointer (650nm)

3. Rat tail switch

4. Waterproof grade IP54

5. Battery CR-2 X 1 (3V) Lithium battery

6. Leather rail interface standard

7. Voice reading (Chinese/English)

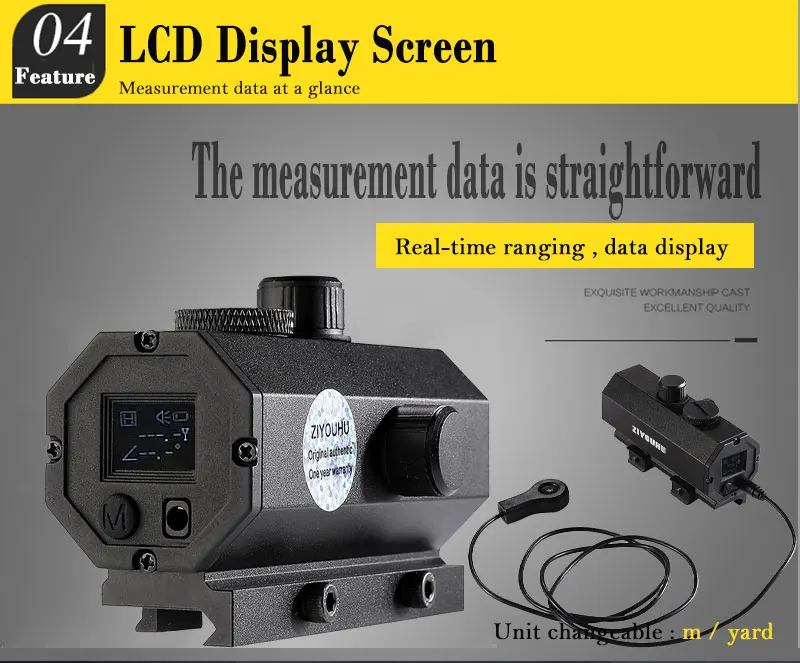

8. OLED display, support the screen to follow the direction of rotation.

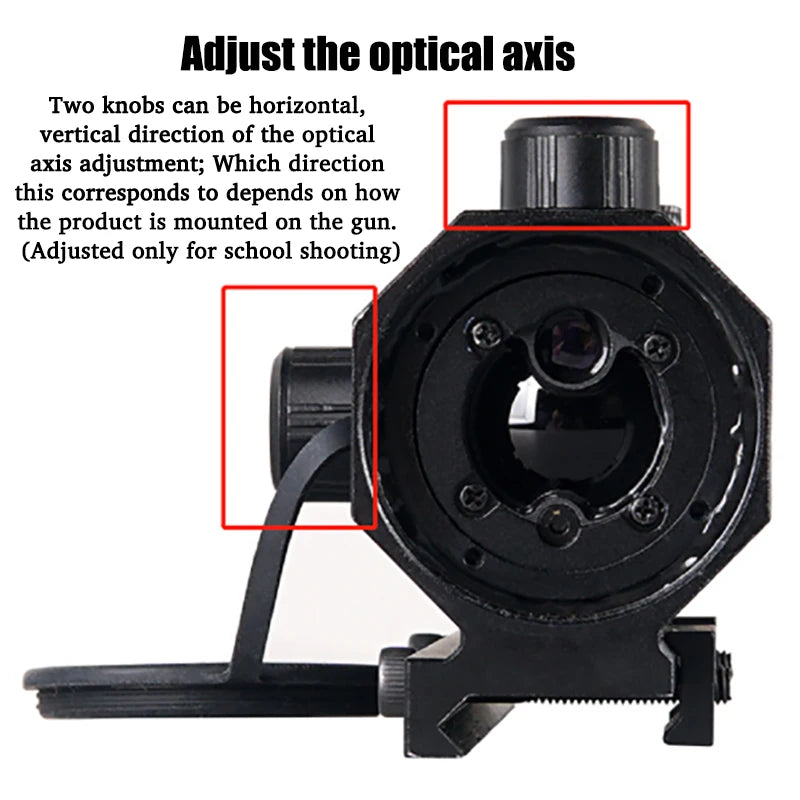

9. Aiming method: mechanical aiming + scope adjustment

10. Size: 5*6.2*10cm

11. Weight: 252g charged, 241g uncharged

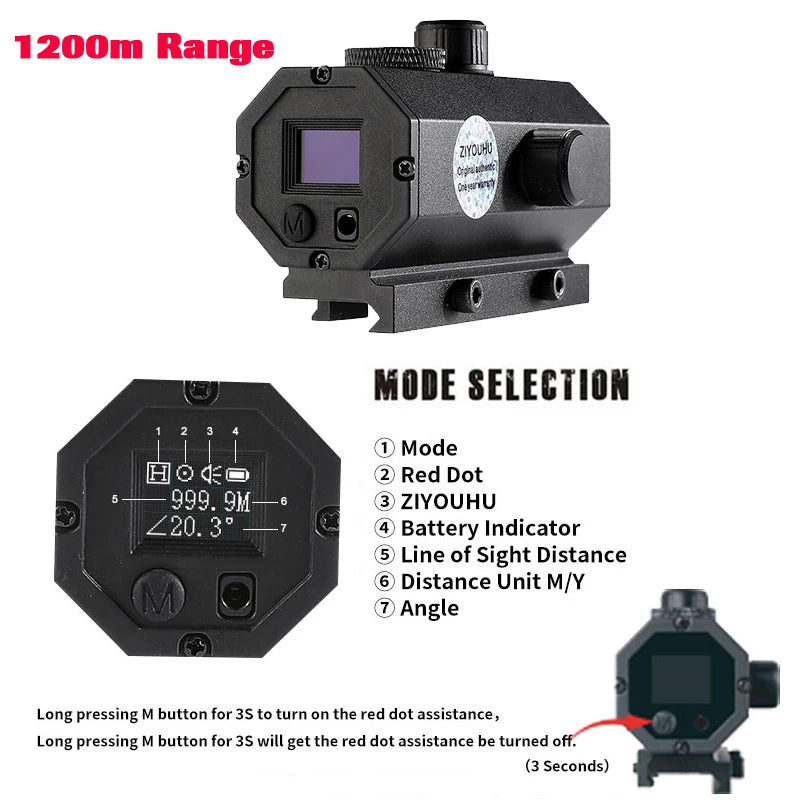

3. Function description

1. Press the POWER button to turn on

2. After power on, short press the POWER button to measure the distance, long press the POWER button for 3 seconds to continuously measure the distance

3.3 minutes of no operation, automatic shutdown, long press the POWER button for 10 seconds to shutdown

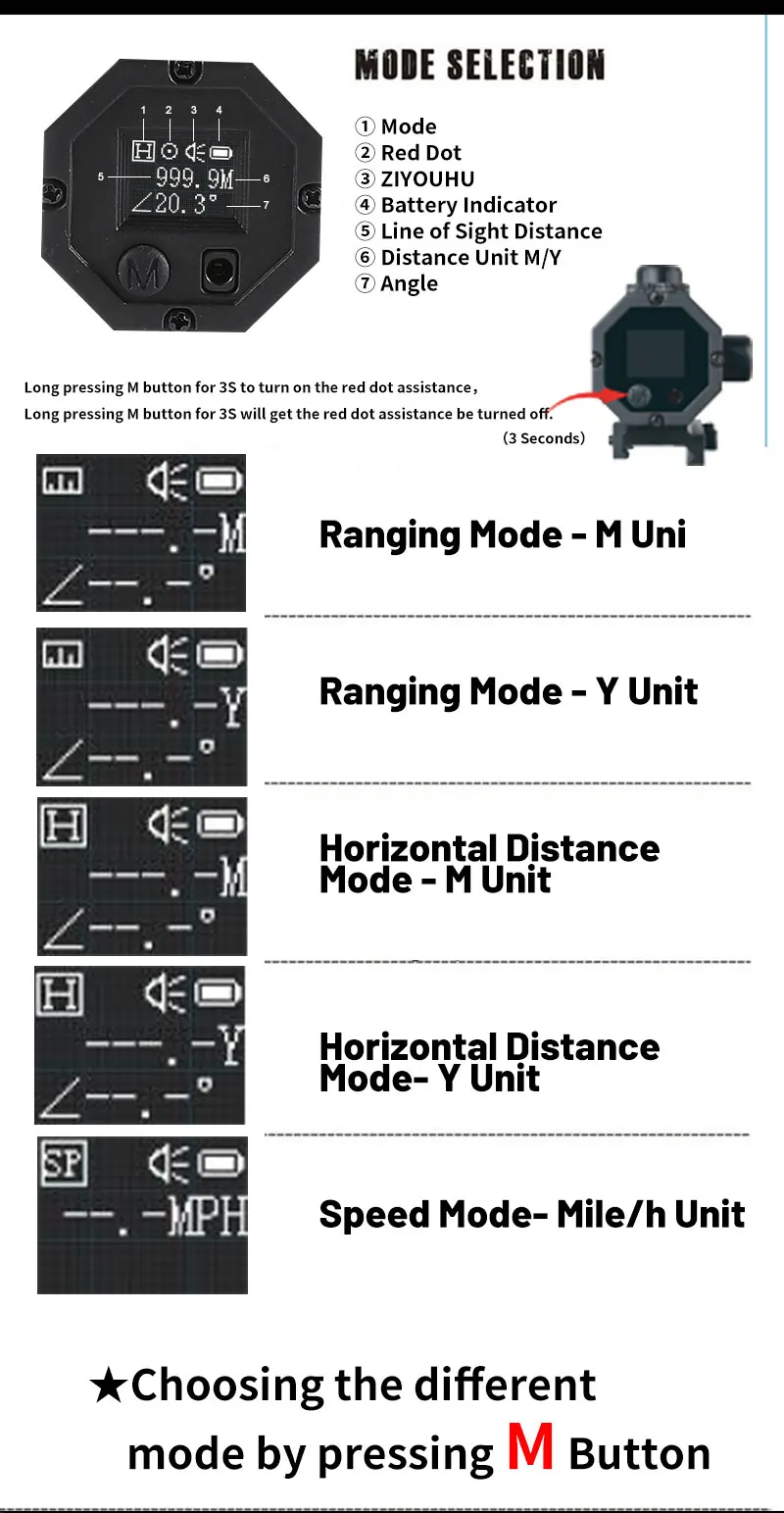

4. Short press the M key to switch the mode, long press the M key for 3 seconds to turn on or off the laser pointer

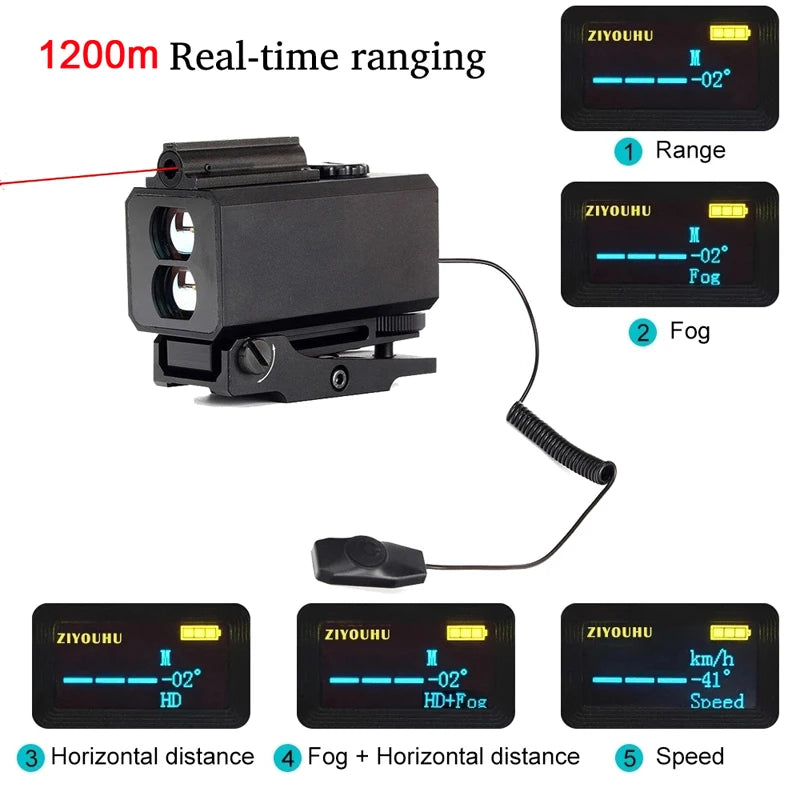

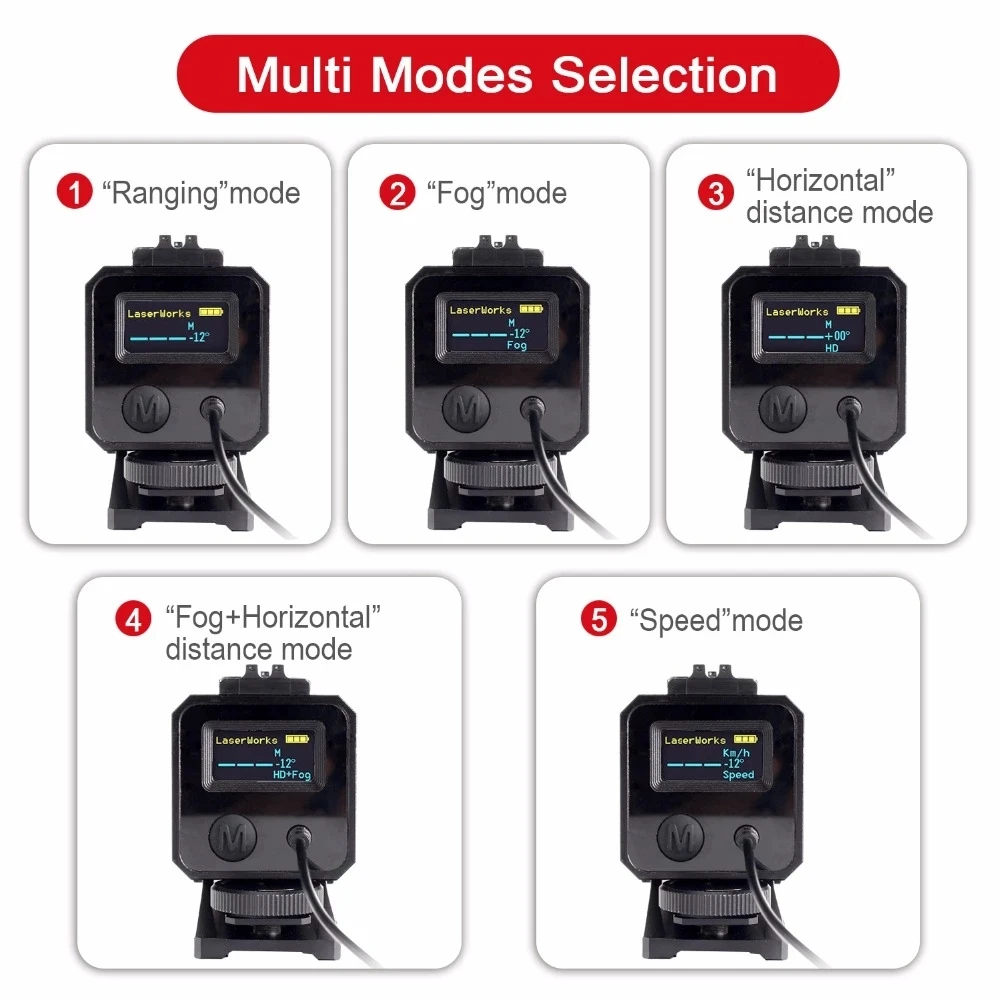

5. Mode:

Ranging Mode Meter (M) Mode

Ranging Mode Code (Y) Mode

Horizontal Distance Mode Meter (M) Mode

Horizontal distance pattern code (Y) pattern

Speed mode mile/h

(Pls Note CR2 battery Not Including!!!)


The Mini8 LED display screen is covered with a protective film. If you need clearer readings, you can remove the protective film

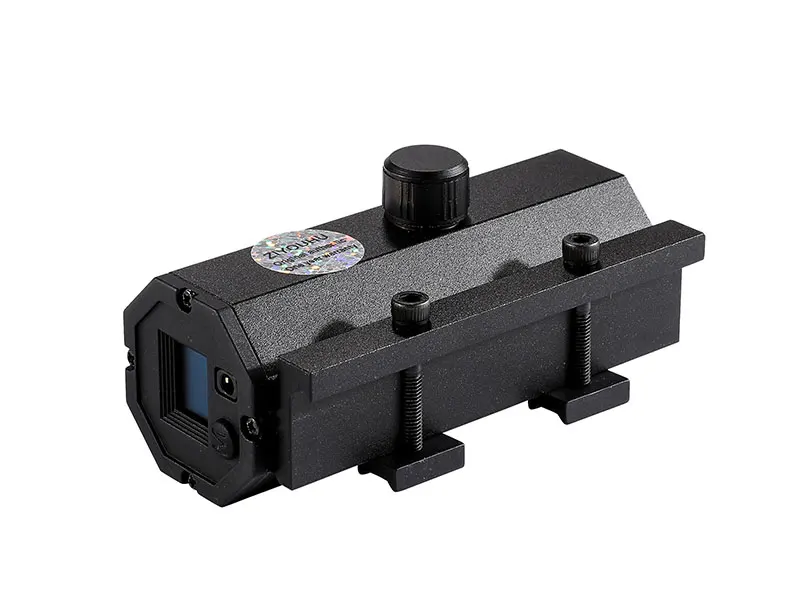

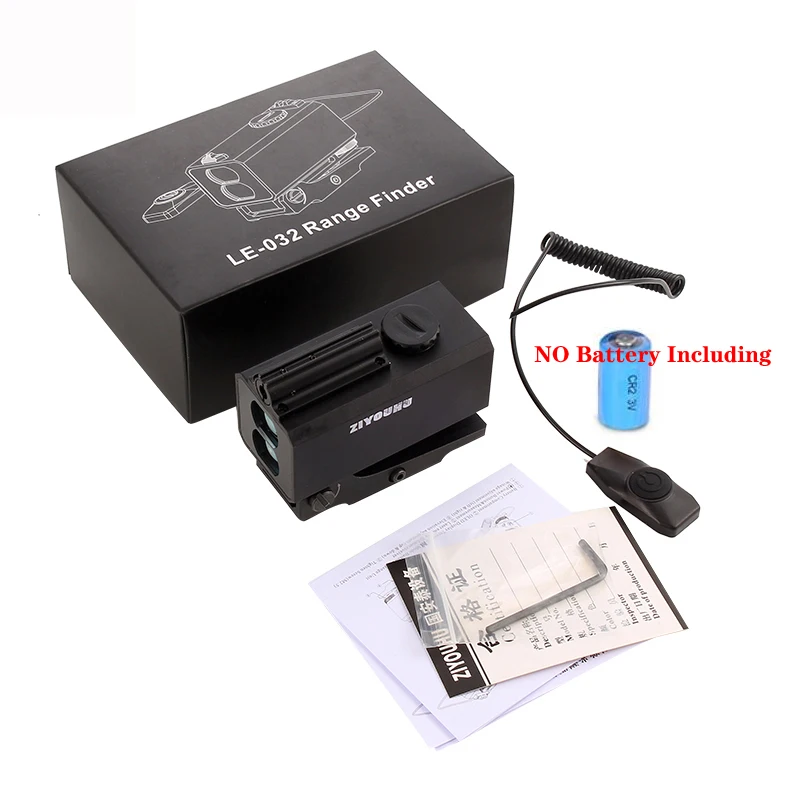

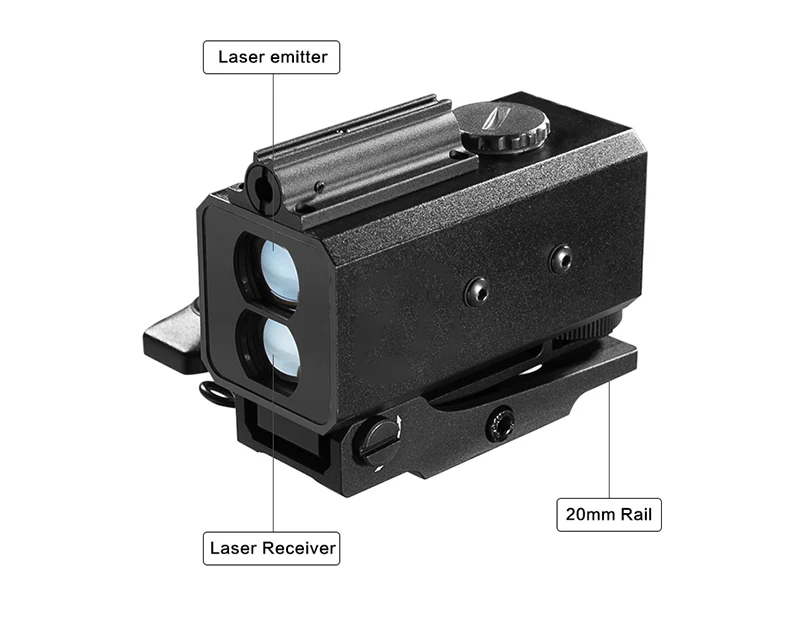

LE-032 Range Finder

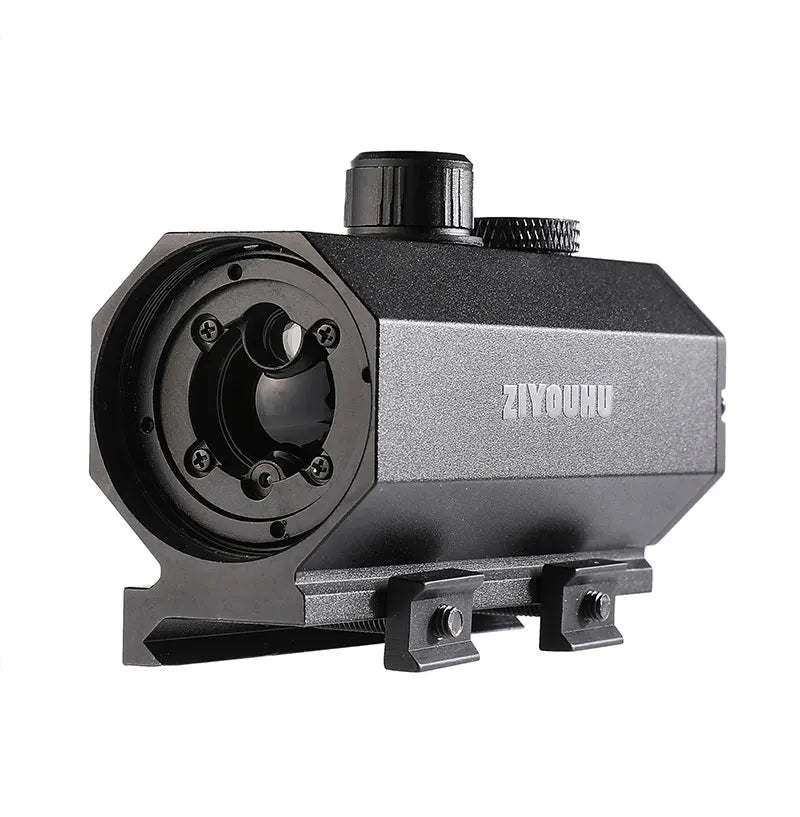

1) Mini laser ranger.
2) All metal shell,hard enought.

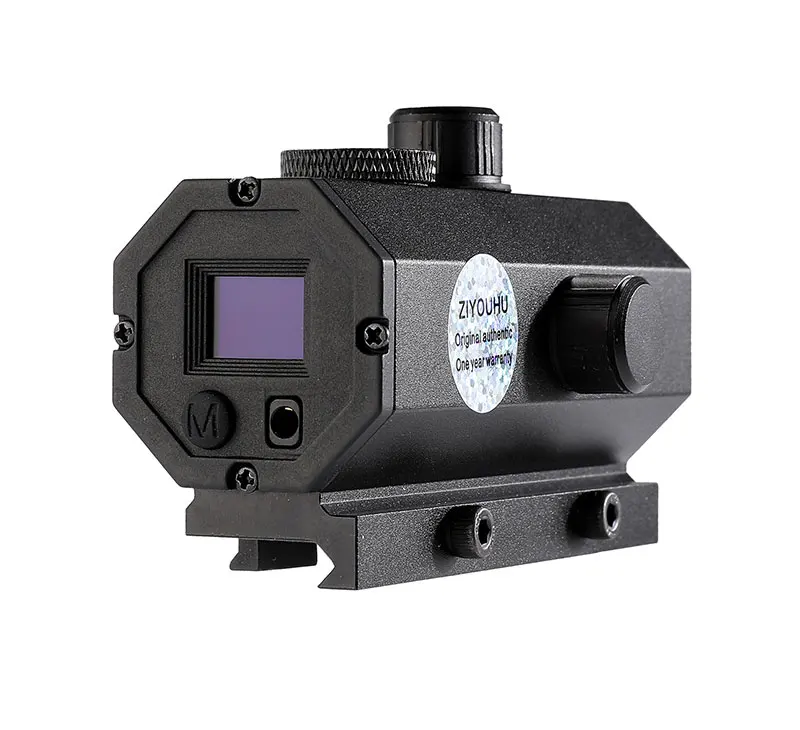

3) Color OLED display.
4) The mate of rilfescope, coordinate with the machine aiming point.

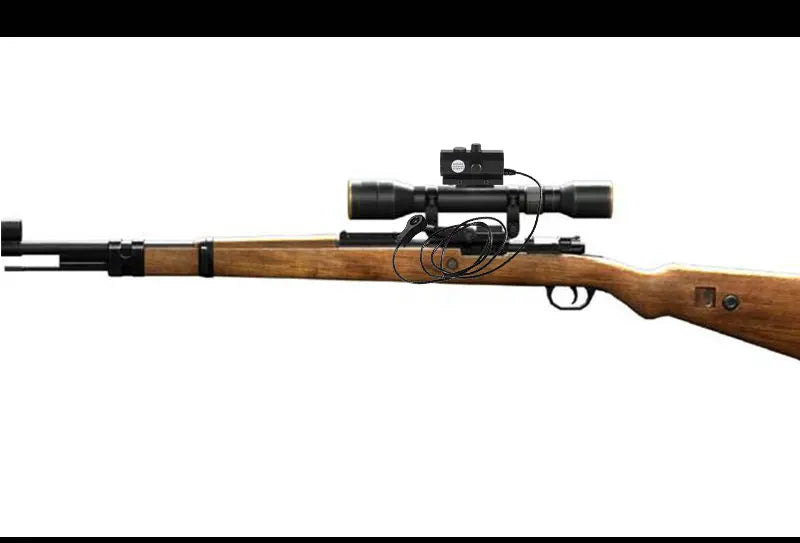

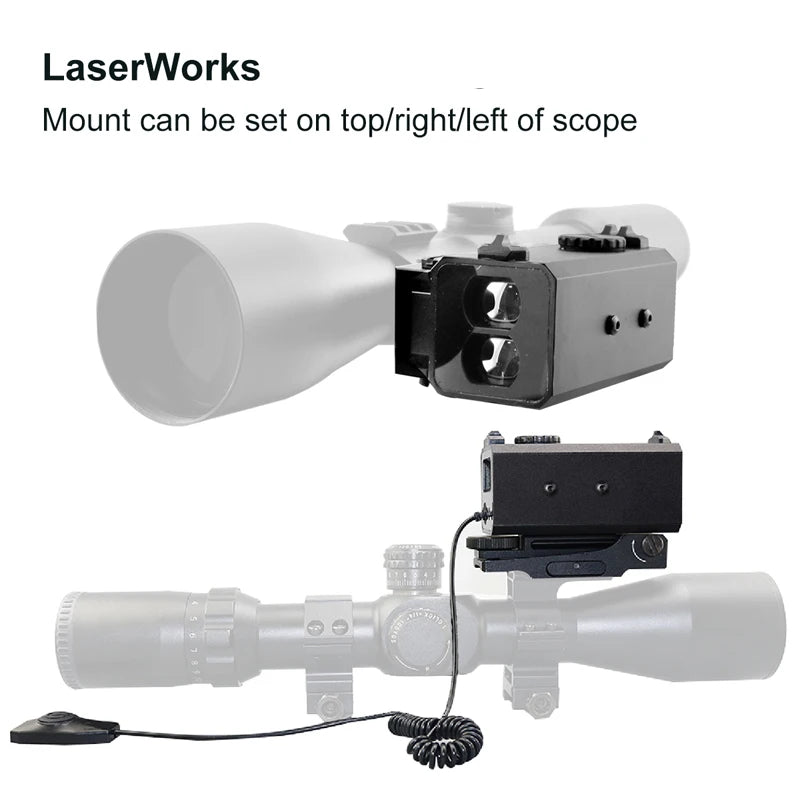

5) Easy to mount on rifle, bows, crossbows and other products.
6) Can be continuous distance measurement in foggy weather.
7) Test the speed if the moving objects in the same direction.
8) Units of measurement can be change immediately.

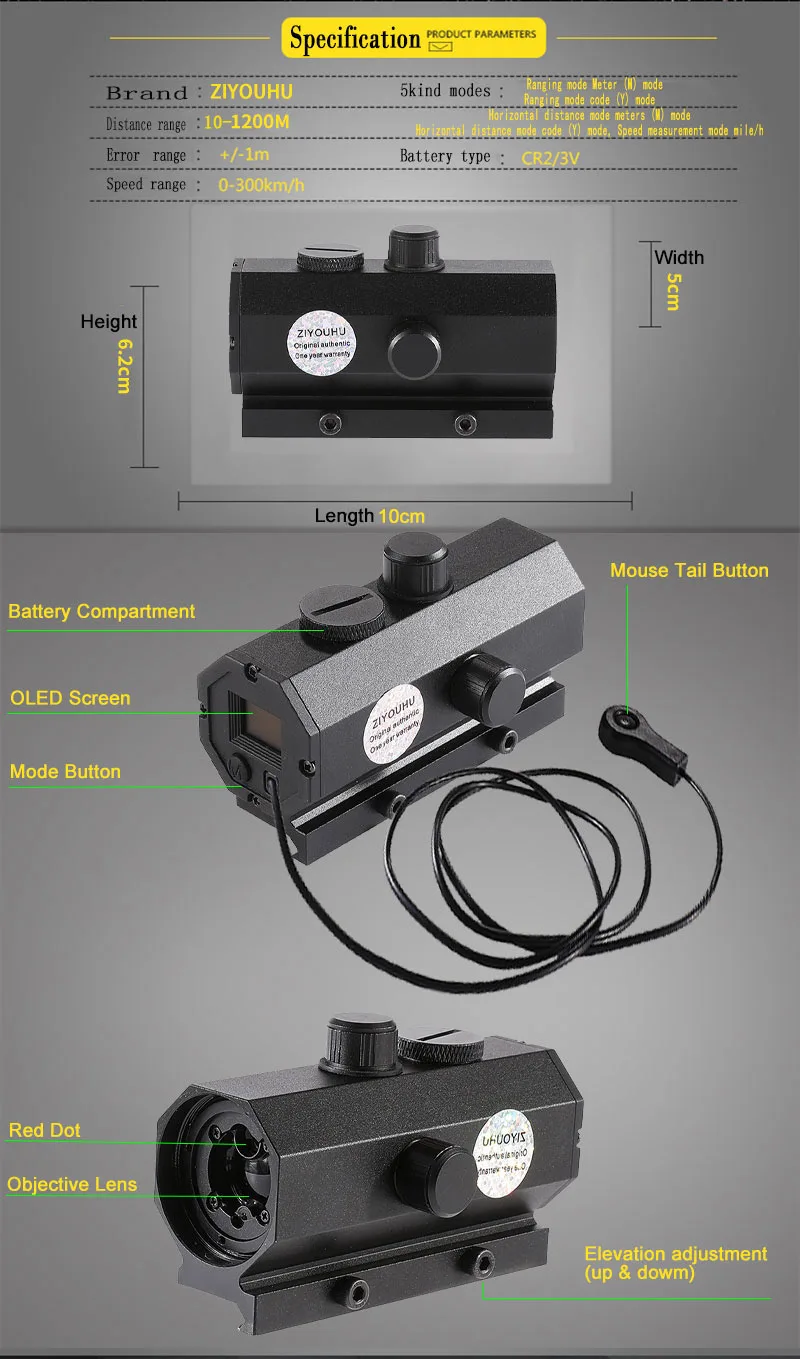

Specification

Measurement Range: 5 - 1200m
Accuracy: +/-1m
Speed Range: 0 - 300km/h
Water Resistance: IPX4

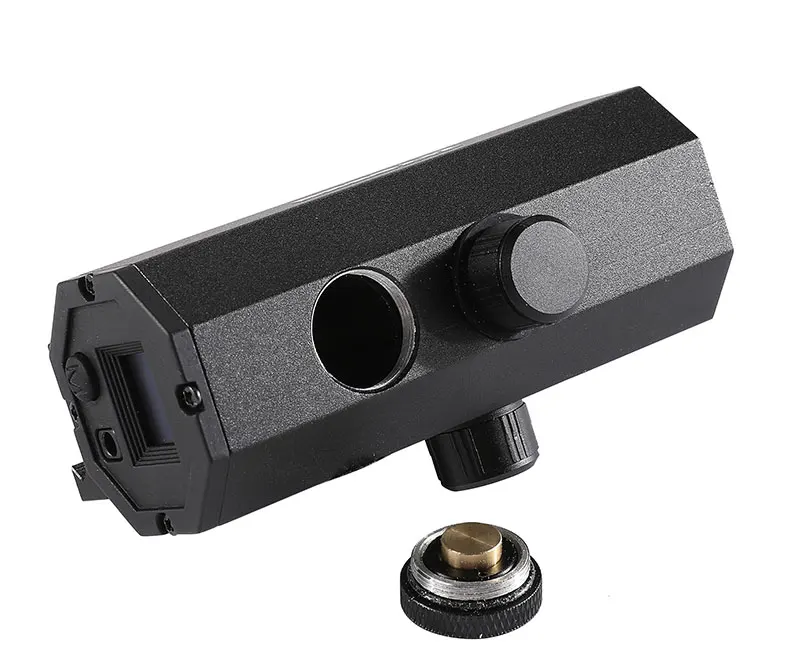

Battery: 3V CR2 (not included)
Display: OLED screen
Wave Length: 950nm
Material: Alloy

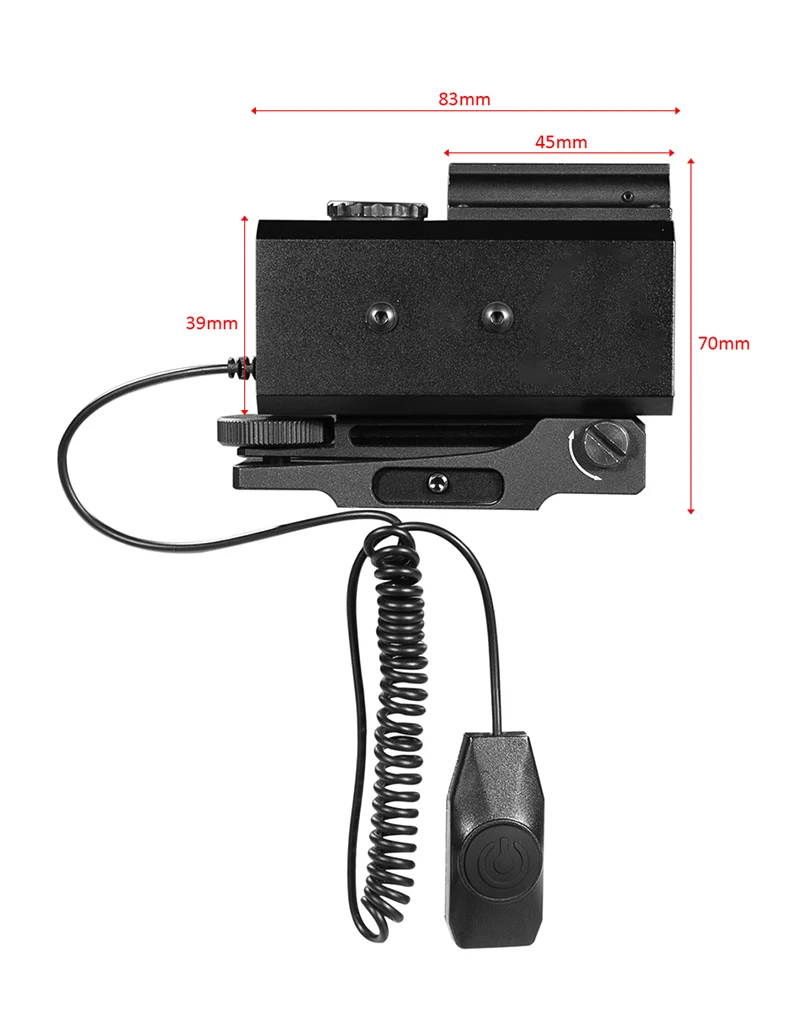

Dimension: 8.3 * 3.9 * 5.8cm / 3.3 * 1.5 * 2.3in
Weight: 223g / 7.9oz

Description

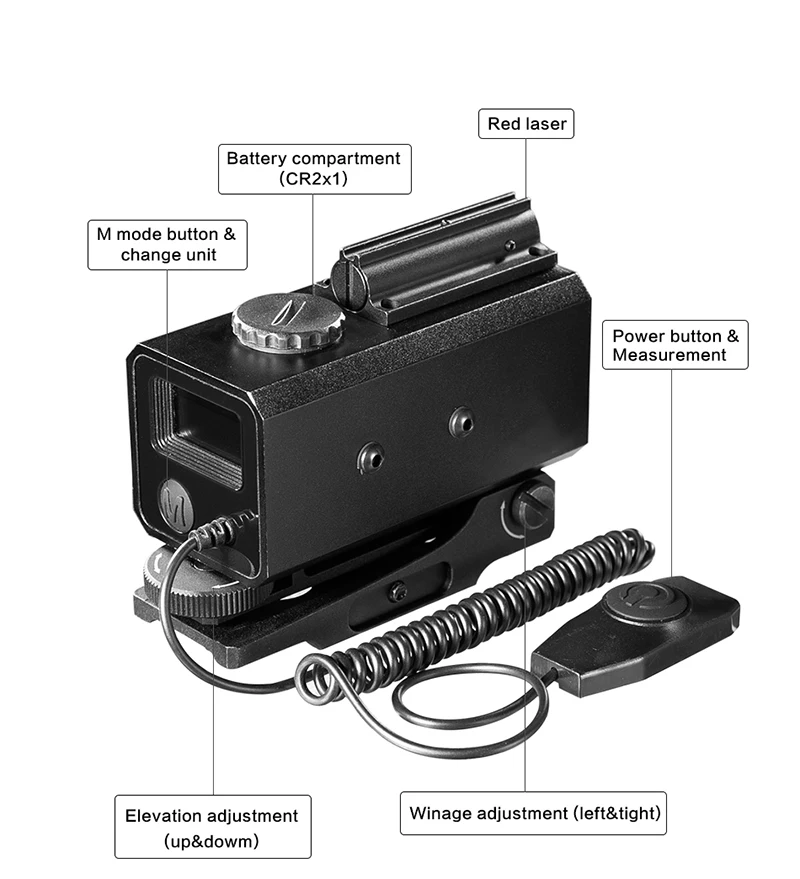

◐ Continuous press the tail switch turns on the device.
◐ Ranging mode is the default; this is the distance measurement mode.
continuous press the M button, change the unit of distance. M and Y.
◐ Click the rat tail switch, the upward arrow will be appears at the bottom right of the screen,
◐ That's mean the device is in the ranging mode. Measurement the distance.
◐ Press M key to change the mode.
◐ Multi-level power display.
◐ In the "Speed" mode, the unit of the measured value needs to be converted separately. (Km/h or mile/h)
◐ Pitch angle data by way of real time continuous output

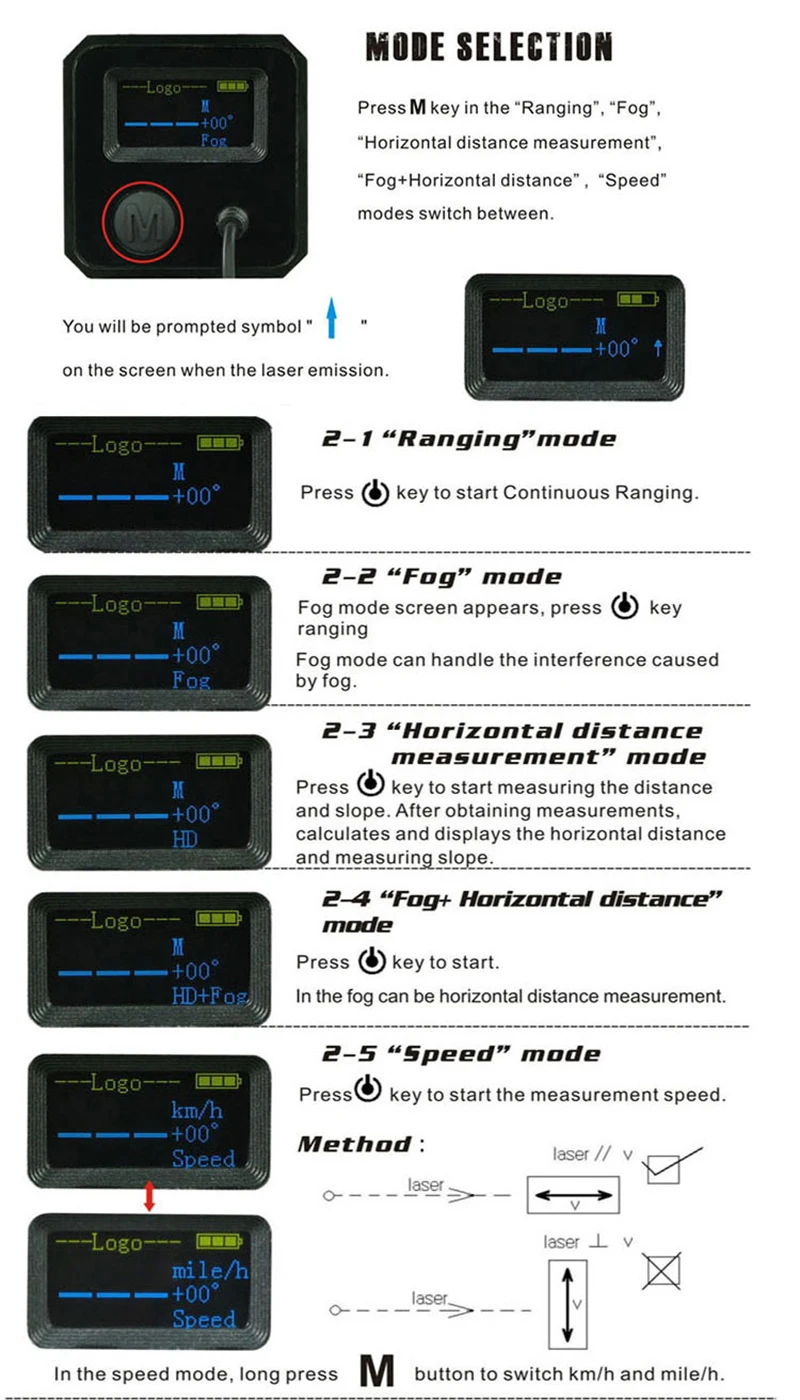

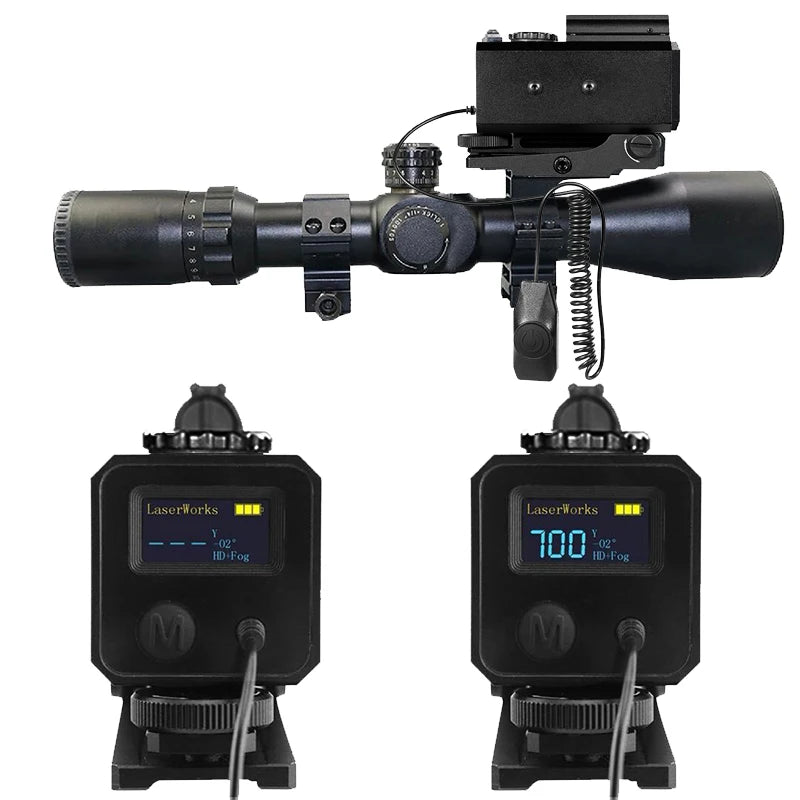

Ranging Mode:

☛ Fog mode
▁Fog mode screen appears, press power key ranging
▁Fog mode can handle the interference caused by fog.

☛ Horizontal distance measurement mode
▁Press power key to start measuring the distance and slope. After obtaining measurements.
▁Calculates and displays the horizontal distance and measuring slope.

☛ Fog + Horizontal distance mode
▁Press power key to start.
▁In the fog can be horizontal distance measurement.

☛ Fast lock into the target
▁Continuous measurment and real-time ranging.

☛ Speed mode
▁Press power key to start the measurement speed.
▁In the speed mode. Long press M button to switch km/h and mile/h.
